Optimal Dual Turn Bariatric

Description

For the patient

• Designed to support patients with Ventilator-Associated Pneumonia (VAP), Lower Respiratory Tract Infections (LRTIs), and those at risk of pressure ulcers, these systems offer comfort, care, and clinical effectiveness.
• Lateral rotation and alternating therapy in one system – Covered by Invention Patent I 575176 (March 21, 2017).
• Lateral rotation offers three turning modes—Left Turn, Full Turn, and Right Turn—with adjustable angles and cycle times ranging from 10 to 95 minutes.
• TrueCare Alternating enhances patient comfort by fully re-inflating all sets of air cells before the next set deflates – Invention Patent I 543733 (August 1, 2016).
• Innovative iLAL (independent Low Air Loss) effectively reduces moisture and skin heat on the support surface by periodically delivering a high volume of low air loss relief.

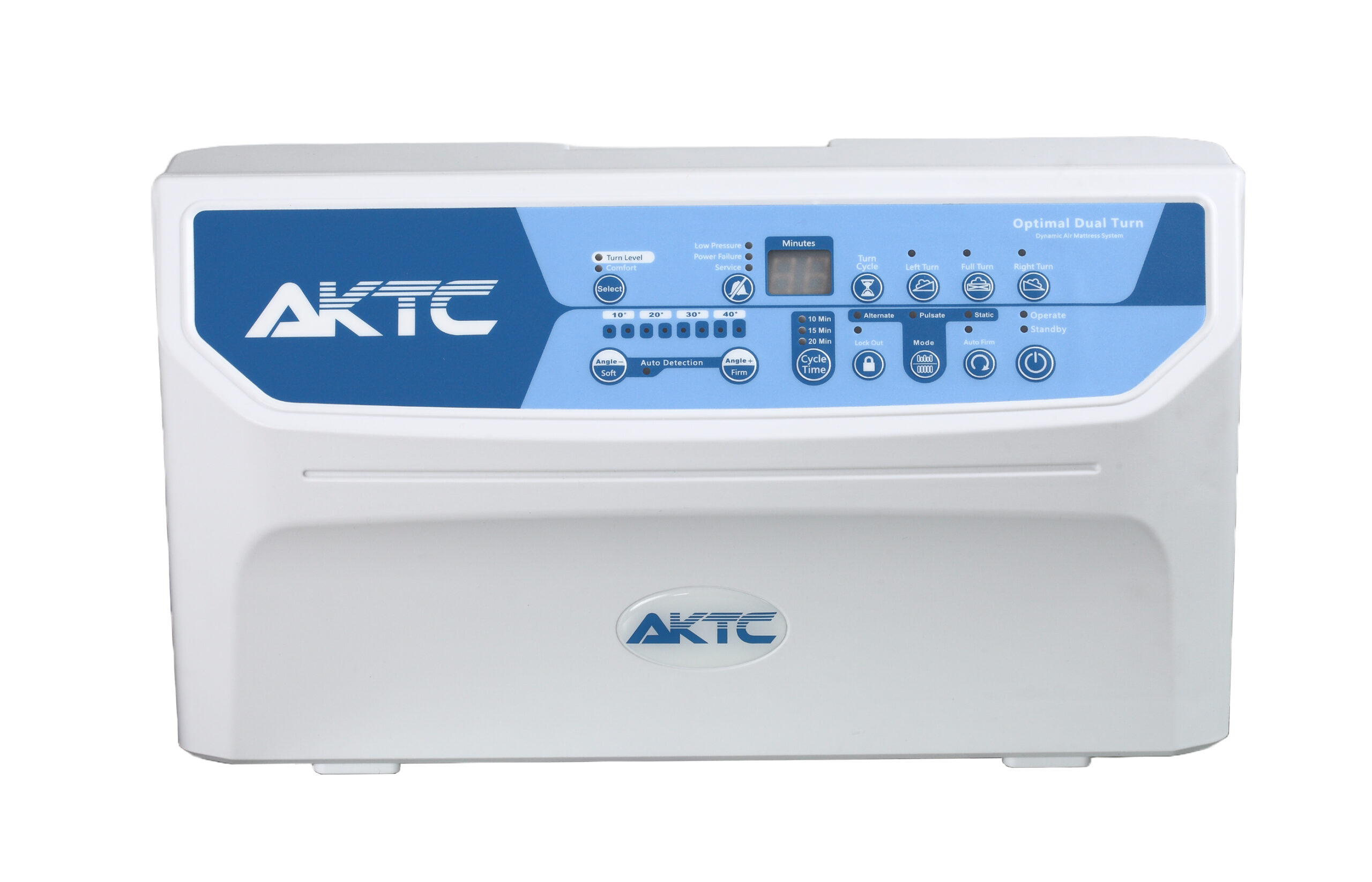

• Adjustable digital comfort control with optional auto-detection recommends optimal pressure settings using advanced software algorithms.
• Selectable alternating cycle times of 10, 15, 20, 25, or 30 minutes with LED display and static mode for nursing procedures. Includes an industry-standard 20-minute static-to-alternating auto-revert feature to ensure patient safety.
• Auto-Firm mode allows one-touch rapid inflation for patient transport.
• Continuous Low Pressure (CLP) mode offers a static low-pressure surface for patients who cannot tolerate movement but still require pressure redistribution.
• Pulsate mode provides a periodic pressure-varying static surface with adjustable cycle times.
• Audiovisual indicator signals notify users of power failure, low pressure, or service requirements with detailed error codes.
• Medical-grade mattress top cover is vapor-permeable, water-resistant, and fire-retardant, helping to maintain skin integrity. Features two high-quality molded-tooth zippers for easy replacement and cleaning.
• Dual-way “Quick-CPR” enables immediate mattress deflation in emergency situations – USA Patent 6,257,269 B1 (May 3, 2000).
• Two-stage Fowler’s Detector automatically stops lateral rotation at 20 degrees and increases pressure output at 45 degrees to prevent “bottoming-out” when the patient is in a backrest position.

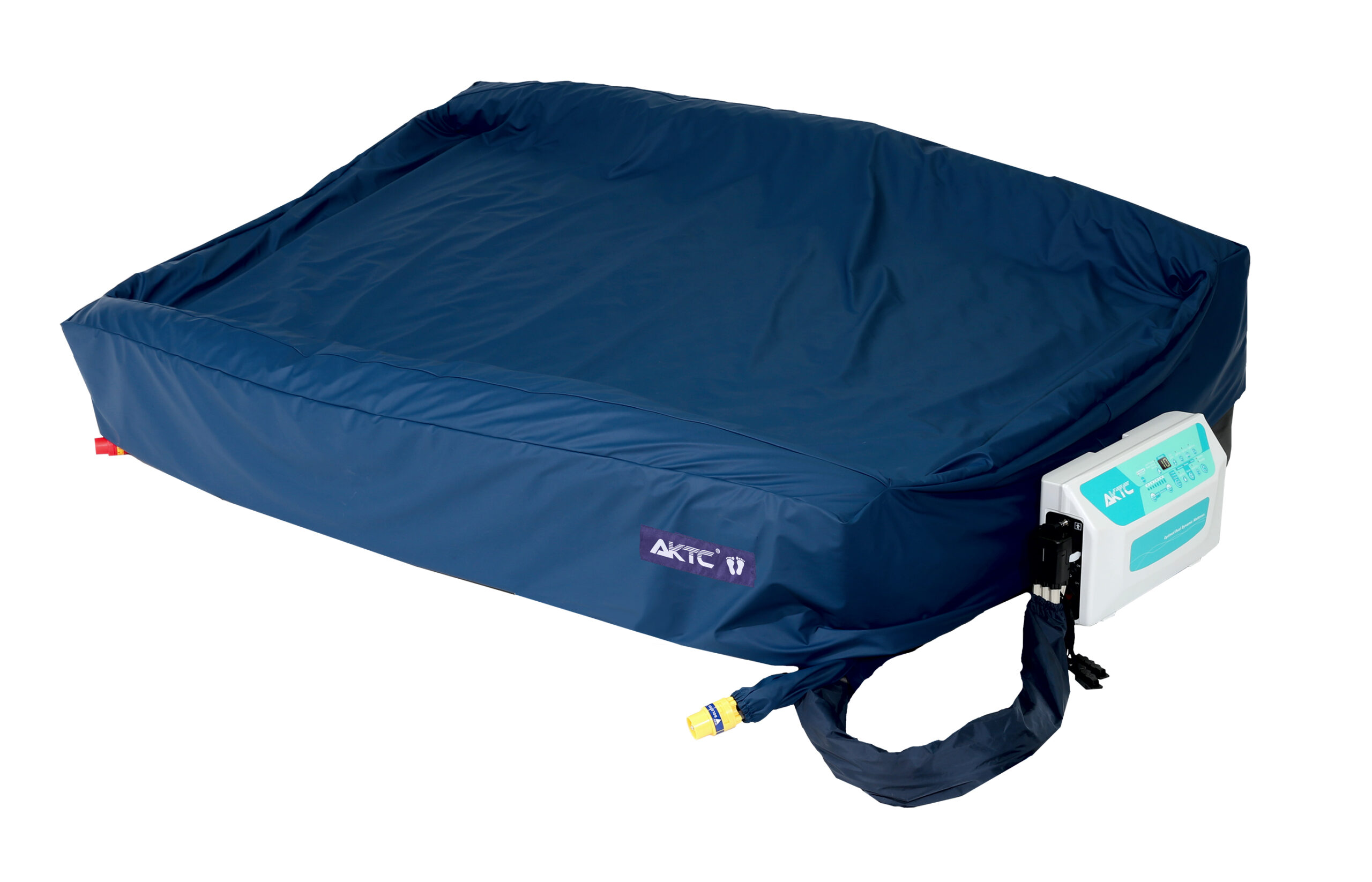

• Bariatric mattress sizes (48″, 54″, and 60″ widths) available to support heavier patients.

For the Caregiver and Distributor

• Dual-way “Quick-CPR” also allows immediate mattress inflation with an optional handheld inflator for rapid setup – USA Patent 6,257,269 B1 (May 3, 2000).
• Automatic panel lockout improves safety by preventing unintended setting changes.
• CQC (Convenient Quick Couplings) simplify air cell replacement without requiring tools – Invention Patent I 574651 (March 21, 2017).
• Inserted-molding elastic hanger brackets automatically adjust to fit various footboard sizes.
• Robust all-in-one hose and pump connector ensures a secure and durable connection.
• Modular pump and mattress design allows for easy maintenance and part replacement.
• Compliance certified: IEC 60601-1 and IEC 60601-1-2 certified; additionally, IP21 tested for IEC 60601-1-11 compliance in home healthcare environments.
